Loupe

Loupe is a desktop client for Kubernetes, licensed Apache-2.0. It reads the kubeconfig kubectl already uses and issues requests directly to the API server from your machine.

It is a Tauri application: a React and TypeScript frontend over a Rust core that holds the client connection. Builds are published for macOS, Linux and Windows, and it works against any conformant Kubernetes cluster — managed, self-hosted, or a local kind or OrbStack cluster.

Architecture

Loupe has no in-cluster component. There is no operator to install, no service account to create, and no telemetry.

Every request originates from the machine running the app, using the credentials in the selected kubeconfig context. Authorisation is therefore whatever RBAC already grants that user: Loupe can read what kubectl can read, and is refused the same things.

Resource types are resolved through the API server’s discovery endpoints rather than a compiled-in list, and lists are requested as application/json;as=Table;g=meta.k8s.io;v=v1 so the server returns the same rows and printer columns that kubectl get renders. Custom resources are handled by the same path as built-in kinds, which is why a CRD installed after the binary was built needs no upgrade to browse.

Install

Loupe ships as a native binary for macOS, Linux and Windows. The current release is v0.1.5 — see the release notes for what changed.

macOS

macOS

The cask resolves the correct architecture:

brew install --cask kryptonhq/tap/loupe

Alternatively, download a .dmg from the latest release — aarch64 for Apple Silicon, x64 for Intel. The architectures are built separately rather than as a universal binary, so each download contains one slice.

Signed and notarised since v0.1.2

The macOS builds are signed with a Developer ID and notarised, with the ticket stapled, so the app opens on a double-click. There is nothing to allow in System Settings and no quarantine attribute to remove.

Loupe also updates itself from v0.1.5 onward, so brew upgrade is only needed to reach that version. The cask is marked auto_updates true; pass --greedy if you would rather Homebrew drive the upgrade.

Linux

Linux

Three formats are published per release, available from the latest release:

Format	Install
.deb	sudo apt install ./Loupe_<version>_amd64.deb
.rpm	sudo dnf install ./Loupe-<version>-1.x86_64.rpm
.AppImage	chmod +x Loupe_<version>_amd64.AppImage && ./Loupe_<version>_amd64.AppImage

Builds are produced on Ubuntu 22.04. The binary links against the glibc of its build host, so building on a newer runner would raise the minimum glibc required to start.

Each file has a detached GPG signature beside it in the release — see verifying a download.

Windows

Windows

Download either installer from the latest release:

• Loupe_<version>_x64_en-US.msi — the MSI package
• Loupe_<version>_x64-setup.exe — the NSIS installer

Unsigned — signing planned

The installers are not yet Authenticode-signed, so SmartScreen warns on first run. Select More info → Run anyway. Signing for both the MSI and the NSIS installer is planned.

Verifying a download

macOS builds are verified by Gatekeeper on open. Linux builds carry a detached GPG signature per file — Loupe_<version>_amd64.deb.asc beside Loupe_<version>_amd64.deb, and likewise for the .rpm and .AppImage.

Import the release key, published in the repository at packaging/linux/loupe-release.asc, and check that its fingerprint is CC01 D01D 4A8B 455D CC67 EED5 1D2D 0C2A 56D7 8DD0 — the same value is in packaging/linux/README.md — before trusting it:

curl -fsSLO https://raw.githubusercontent.com/kryptonhq/loupe/main/packaging/linux/loupe-release.asc
gpg --import loupe-release.asc
gpg --fingerprint "Loupe Release Signing"

Then verify whichever format you downloaded:

Format	Verify
.deb	gpg --verify Loupe_<version>_amd64.deb.asc Loupe_<version>_amd64.deb
.rpm	gpg --verify Loupe-<version>-1.x86_64.rpm.asc Loupe-<version>-1.x86_64.rpm
.AppImage	gpg --verify Loupe_<version>_amd64.AppImage.asc Loupe_<version>_amd64.AppImage

Look for Good signature from "Loupe Release Signing". The warning that the key is not certified with a trusted signature is expected unless you have signed the key yourself.

Note

The .sig files in each release are minisign signatures used by the built-in updater, not GPG signatures, and do not verify with gpg. Releases published before Linux signing was introduced have no .asc files.

First run

1. Start Loupe. It reads ~/.kube/config — the same file kubectl uses — and lists every context it finds.

2. Pick a context. Loupe connects using that context’s credentials. Whatever kubectl can see, Loupe can see; whatever RBAC forbids, Loupe cannot.

3. Browse. Nodes, namespaces and pods have dedicated views. All other kinds are listed from the server-rendered table.

Connections are held per context, so switching cluster does not restart the application or discard the previous connection.

The workbench

Loupe holds several pieces of work at once rather than one. Opening an object does not cost you the list it came from, and following a chain — a pod, its ReplicaSet, the Deployment above it — is reversible in both directions.

• Tabs. ⌘T opens one, ⌘W closes it, ⌘1–⌘9 reach one by position, and ⌘-clicking a row opens it in a tab of its own.
• Back and forward, per tab, on ⌘[ and ⌘]. The breadcrumb above a detail view says where the object sits — kind, namespace, name — rather than replaying how you arrived.
• A status bar carrying the cluster, its write guard, the server version and any pending update, on one line that does not move.
• Interface zoom on ⌘+, ⌘- and ⌘0, remembered across launches, from the View menu or the command palette.

Each listing remembers its own namespace, search and sort, so drilling into a row and coming back returns the view as you left it — and two tabs on the same kind can be scoped to different namespaces.

Capabilities

Problems

One view of everything currently broken across the cluster, opened from the top of the rail, from the status bar’s problem count, or as Problems in the command palette.

• Pods — CrashLoopBackOff with the last exit code, ImagePullBackOff and ErrImagePull with the image reference, container configuration errors, OOMKilled on the last termination, Pending with the scheduler’s own reason, not Ready past the grace period, and restarts above a threshold within the last hour
• Workloads — Deployments, StatefulSets and DaemonSets short of their replicas past the grace period, stalled rollouts, failed Jobs, and CronJobs whose last run failed
• Nodes — not Ready, memory, disk and PID pressure, cordoned, and taints that are keeping pending pods off a node they would otherwise fit
• Events — Warning events from the last hour, one row per object and reason with a count, so forty identical FailedScheduling events are one line
• Storage — claims left Pending past the grace period

Rows are ordered worst first, sortable by severity and age, filterable by namespace, and open the object they describe. Each tab keeps its own sort and namespace.

The view is kept current by watching those kinds — one list per kind and then changes — rather than by polling, so a fixed image drops off without a refresh. If RBAC does not allow listing one of them, that category shows a single “not permitted” row instead of an empty section that would read as healthy; the others are unaffected.

What counts as broken rather than still starting is configurable in settings.json, and applies from the next connection. The file is in the application’s config directory — ~/Library/Application Support/ai.krypton.loupe/ on macOS, ~/.config/ai.krypton.loupe/ on Linux, and %APPDATA%\ai.krypton.loupe\ on Windows:

{
  "problems": {
    "gracePeriodSeconds": 120,
    "restartThreshold": 5
  }
}

The status bar counts critical and warning rows. Warning events and unavailable categories appear in the view but not in the count, so a busy cluster’s badge still means something. Metrics-based problems such as CPU throttling are not detected, and nothing is sent anywhere — there are no notifications or alerts.

Resource browsing

• Kubeconfig context discovery, connection, and switching between contexts

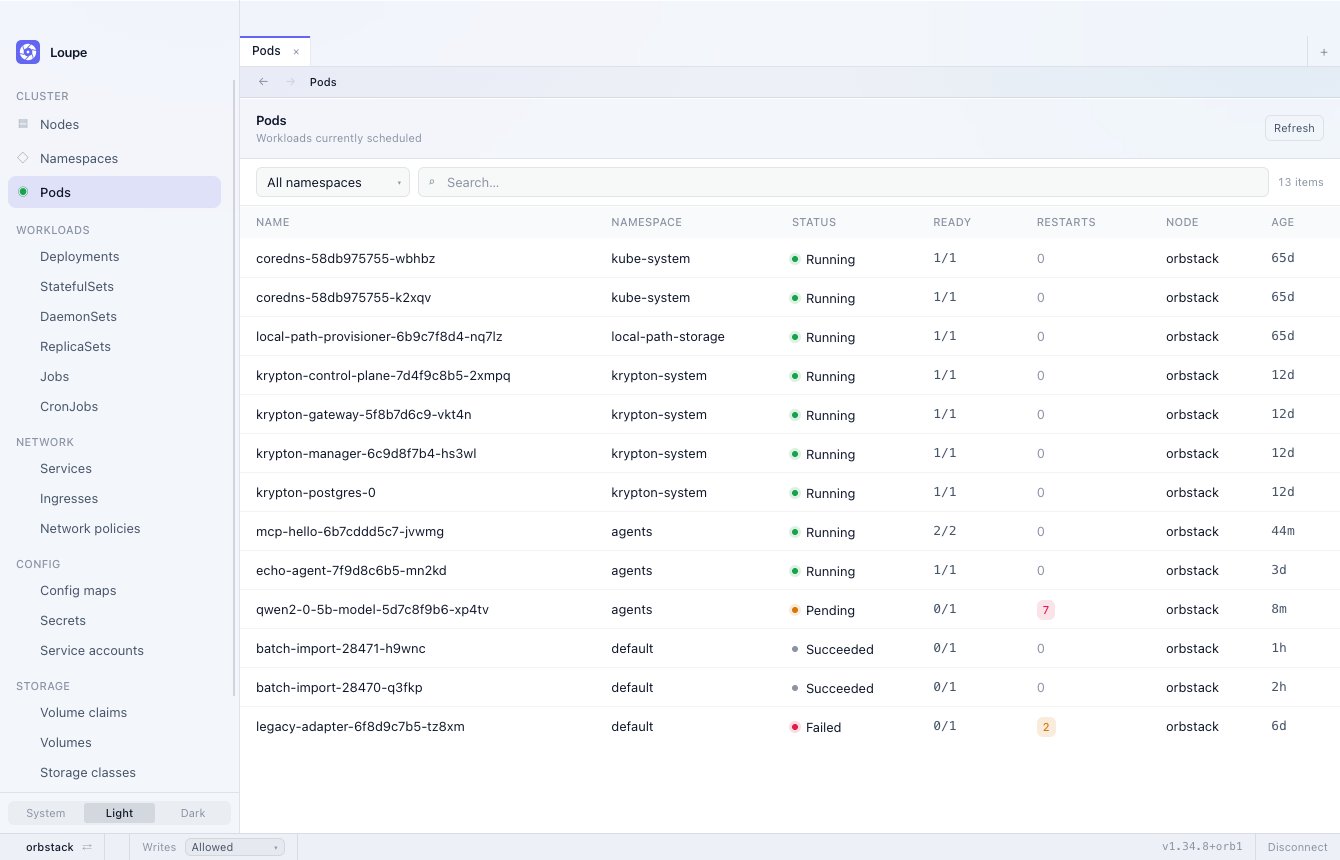

• Dedicated views for nodes, namespaces and pods, with search and paging
• Workloads, networking, config and storage — deployments, statefulsets, daemonsets, replicasets, jobs, cronjobs, services, ingresses, network policies, config maps, secrets, service accounts and persistent volume claims
• Custom resources, resolved through API discovery and rendered with the printer columns declared in the CRD
• Sortable columns, in the units the columns are actually in: ages sort as durations, ready counts as fractions, restarts as numbers. A sort over a partly loaded listing says so rather than implying it covered the cluster.

Detail views

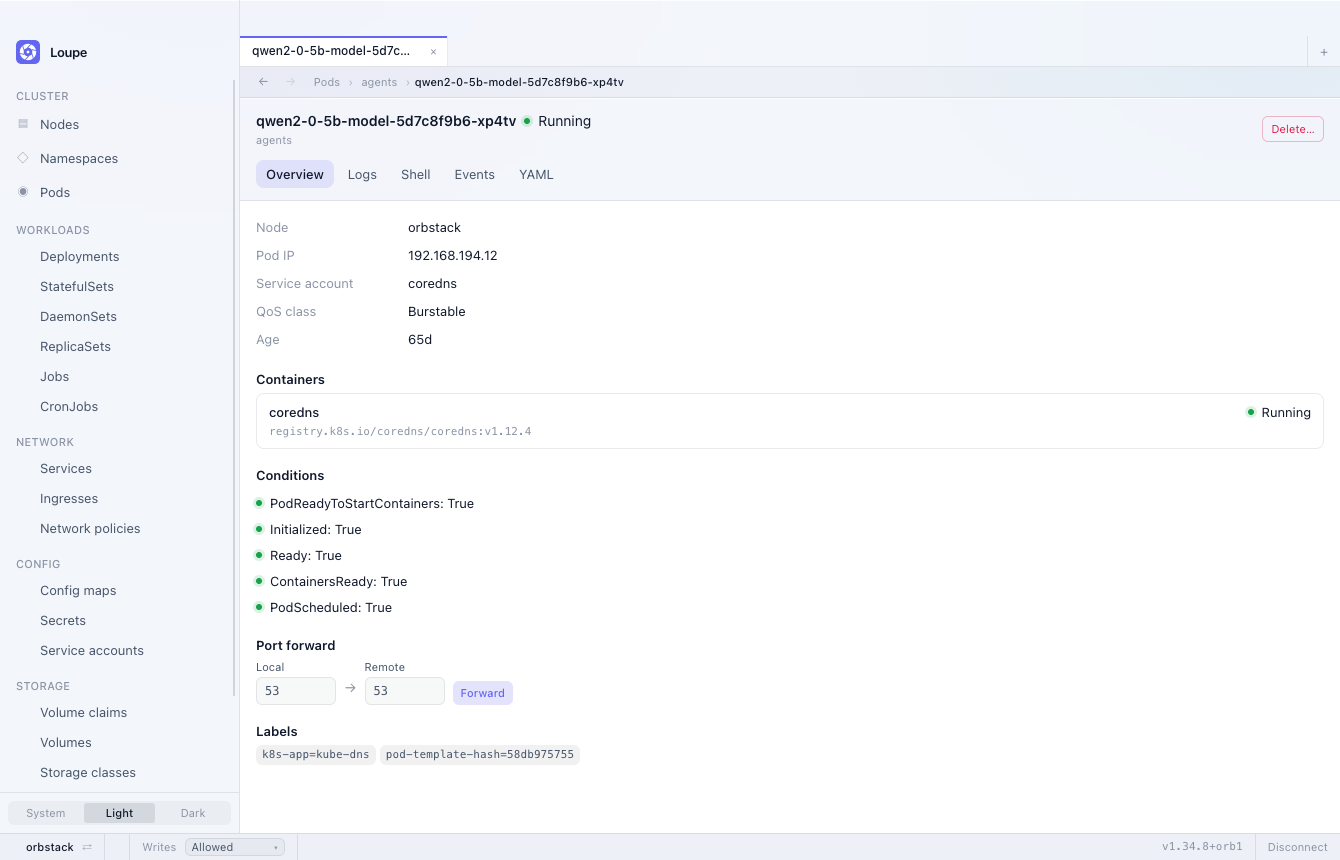

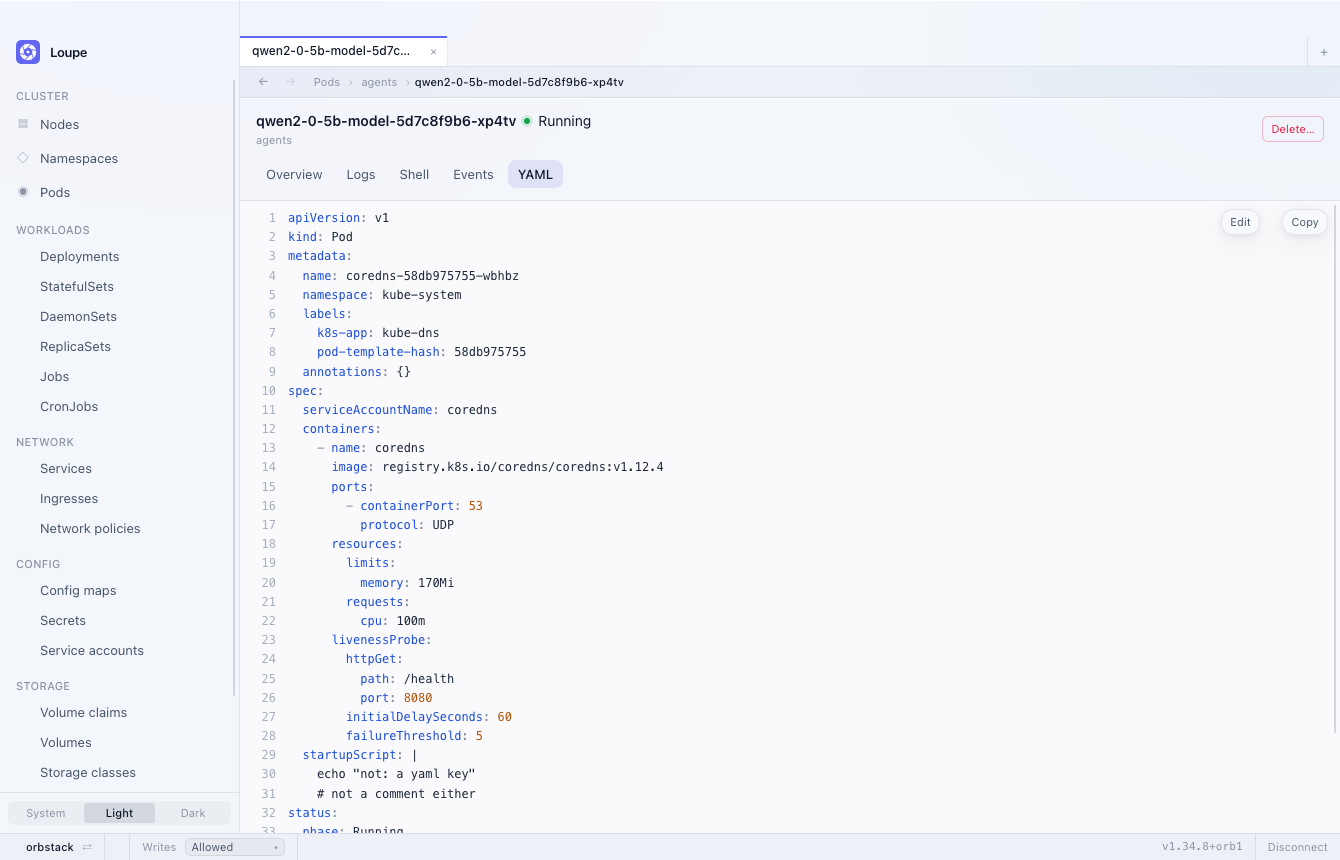

• Pod — containers, termination reasons, conditions, labels, events and the full manifest

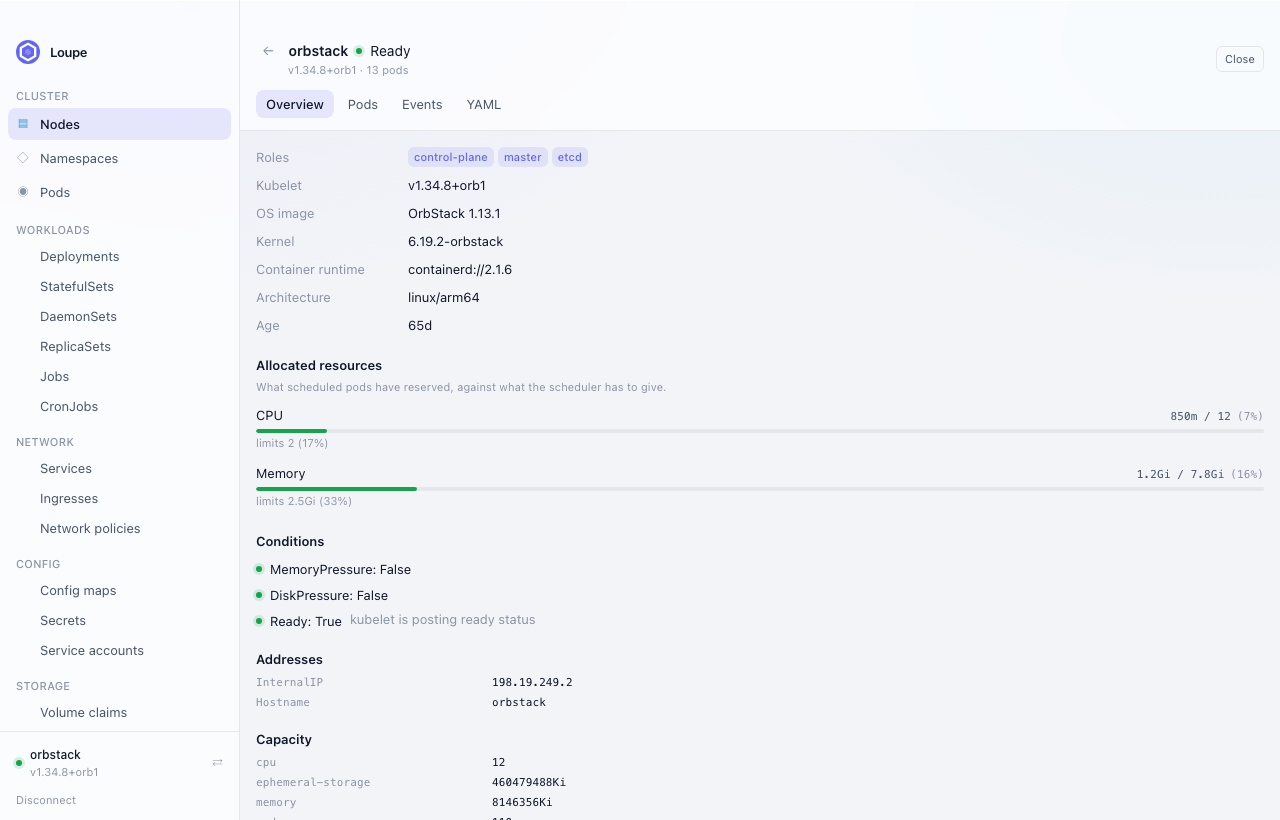

• Node — allocated CPU and memory against allocatable, taints, pressure conditions, and the pods bound to the node
• Namespace — pod phase counts, ResourceQuota utilisation, remaining finalizers on a terminating namespace, and the resources it contains

Logs

• Pod logs streamed from the API server, with container selection, timestamps, and previous for a terminated container’s logs

Secrets

• Keys and byte sizes are listed without retrieving values. Each value is fetched individually on request, and the YAML view redacts data.

Helm

• Release values, rendered manifests, notes and revision history are decoded from the release Secrets. The helm binary is not invoked.

Editing and actions

• The YAML view writes back with a full replace, so a concurrent modification is rejected by the API server rather than silently overwritten
• A diff is shown before every apply
• Scale, rollout restart, delete, cordon and drain, behind confirmations — and hidden entirely where RBAC would refuse them
• Per-context guards: a context can be marked protected, so every write is confirmed by typing its name, or read-only, so writes are refused outright. The guard is shown in the status bar and tints it, so a production cluster does not look like a local one.

Updates

• Loupe checks once on launch and offers a new version in the status bar. Downloads are verified against a signing key compiled into the binary, so a compromised release host cannot ship an artifact the private key did not sign.
• Also available from the command palette as Check for updates.
• The .deb deliberately does not self-update — the package manager owns those files.

Appearance

• Light, dark, or system-following, persisted in settings.json alongside the application’s other configuration

Not yet implemented

As of v0.1.5:

• Creating objects. Loupe edits what already exists; there is no New, and no apply from a local file.
• Cluster-wide search. The filter box matches the rows a listing has loaded, not the cluster.
• Schema-aware editing. The YAML editor has no completion and no validation before the apply round-trip.

Building from source

git clone https://github.com/kryptonhq/loupe
cd loupe
pnpm install
pnpm tauri dev

pnpm dev alone serves the frontend in a browser, where the Tauri bridge is absent. In that case the UI falls back to the fixtures in src/dev/fixtures.ts, allowing layout work without a cluster. That path is development-only and is excluded from production builds.

Contributing

Loupe uses the DCO rather than a CLA. Sign commits with git commit -s; contributors retain their copyright.

• CONTRIBUTING.md — development setup and pull request process
• GOVERNANCE.md — decision-making and maintainership
• SECURITY.md — vulnerability disclosure process

The project follows the CNCF Code of Conduct.

Licence

Apache 2.0. See LICENSE.
